- Modelo:

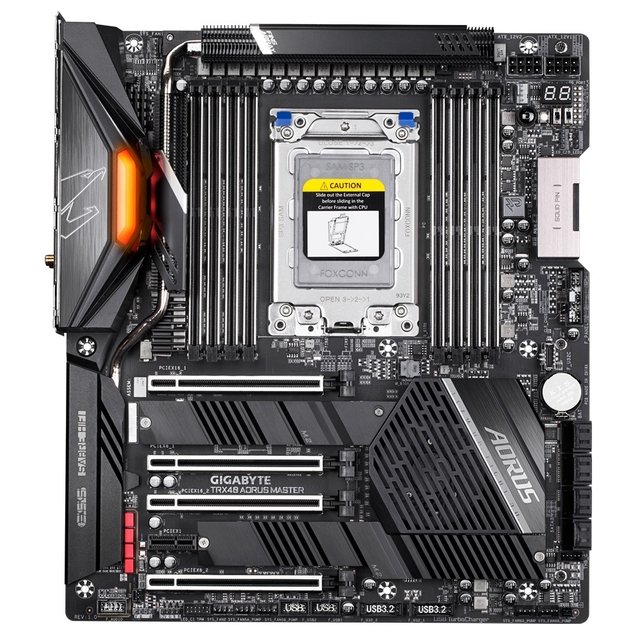

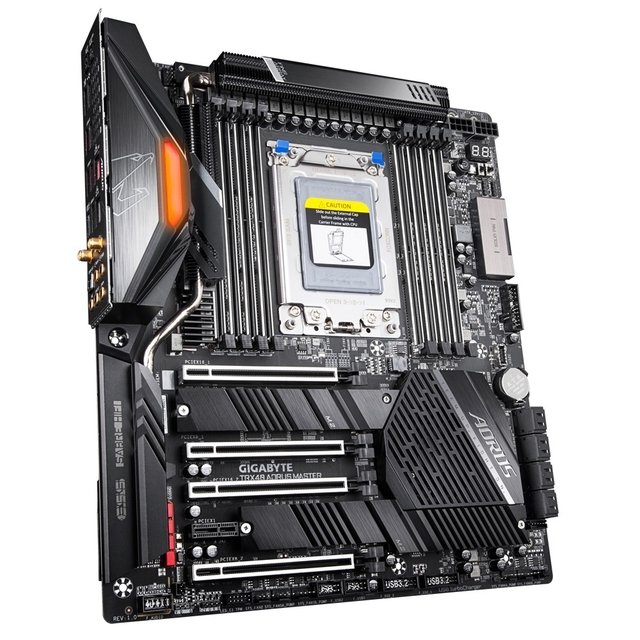

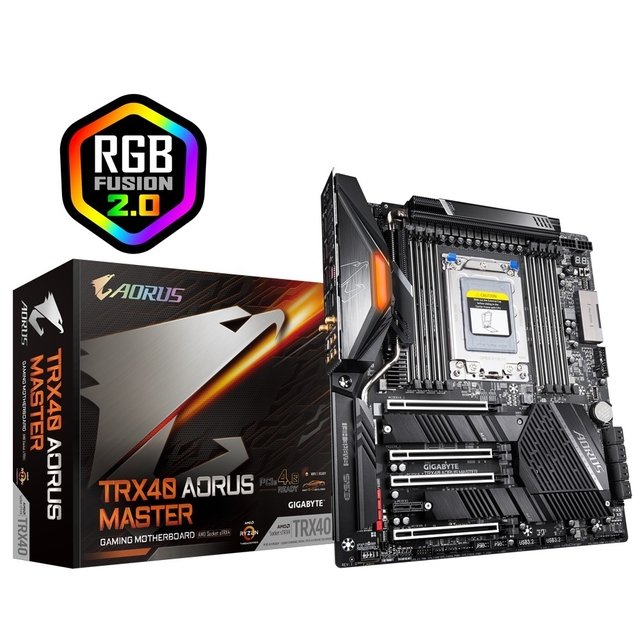

AORUS MASTER TRX40
- Especificações:
- Processador:
Processadores de desktop AMD Ryzen™ Threadripper™ de 3ª geração
- Chipset:
AMD® TRX40
- Memória RAM:
8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
Quad Channel memory architecture
Support for DDR4 4400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
- Slots de Expansão:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
1 x PCI Express x1 slot
- Suporte Multi-GPU:
Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
- Armazenamento:
Integrated in the CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Integrated in the Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
- USB:
Integrated in the CPU:
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Integrated in the Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- LAN:
1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN)
1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN)
- Comunicações wireless:
Intel® Wi-Fi 6 AX200
Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
Bluetooth 5.0
- Áudio:
1 x Realtek® ALC4050H codec+1 x Realtek® ALC1220-VB codec (Rear audio)
1 x Realtek® ALC4050H codec+1 x ESS SABRE9218 DAC chips (Front audio)
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
- Portas USB:
1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
5 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
- Dimensões:
Formato Extended-ATX, 30.5cm x 26.9cm
- Garantia
12 meses de garantia (9 meses de garantia contratual junto ao fabricante + 3 meses referentes à garantia legal, nos termos do artigo 26, II, do Código de Defesa do Consumidor).
